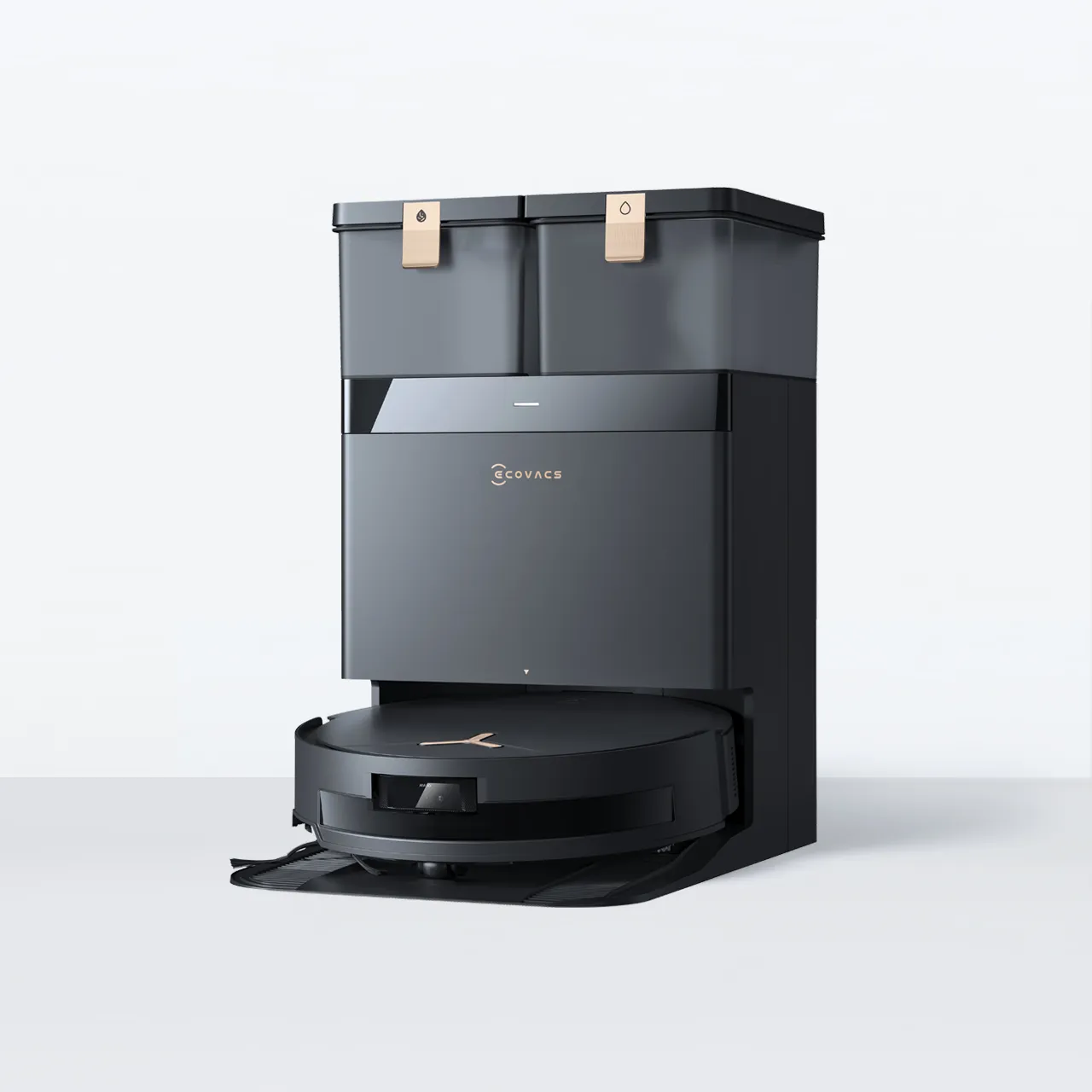

DEEBOT T50 MAX PRO OMNI+WINBOT W2 PRO OMNI

Robotic Vacuum T50 MAX PRO OMNI features 18,500Pa Suction and ZeroTangle with Window Cleaning Robot(W2 PRO OMNI)

Key Features

This product is currently out of stock. New stock will arrive in mid-August.
Key Points:

DEEBOT T50 MAX PRO OMNI:

1. Boosted Large-Airflow Suction Technology
80% better carpet cleaning, 100% large particles pick-up.
How: DEEBOT lifts dust with its brush and sucks it into the dustbin via 16.3L airflow x 18500 Pa suction. Powerful pouch battery enhances vacuuming efficiency.
2. TruEdge 2.0 Adaptive Edge Mopping
The Mop continuously adjusts to hug edges and corners. Side brush extends automatically to clean tight spots, leaving no dirt behind.
3. Zero Tangle 2.0 Technology
Triple V-shaped structures, actively gathers, lifts, and untangles hair, ensuring a tangling rate as low as 0%-even with long hair.
4. Remarkable Carpet Cleaning
"Carpet First" vacuums carpets dry before mopping to prevent wetting and contamination. Mop automatically lifts 18mm on newly-detected carpets during a cleaning task.
5. AIVI 3D 3.0 OMNI-Approach Technology
Adapts various home environments. Precise object detection and dynamic path planning for efficient cleaning.
6. New Upgrades in OMNI Station
40-75℃ Temperature-Controlled Mop Washing, 65℃ Hot Air Drying, Auto Empty, Auto Cleaning Solution Adding, Fast Charging, Off-Peak Charging
7. Intuitive Interaction with YIKO-GPT
Understands requests with remarkable accuracy, providing tailored responses and helpful guidance.
WINBOT W2 PRO OMNI:

1. Unique, cutting-edge window cleaning station, a multi-functional dock to free your hands
1) Integrated large capacity battery
2) Two-in-one compound cable with both safety and power cords
3) Automatic cable management
4) Anti-drop protection mechanism
5) Muti-function station panel
6) Portable storage

2. Revolutionary cleaning powered by innovation for clearer than ever windows
1) Industry-first edge cleaning mode which brings ultimate cleanliness to window edges
2) Fully upgraded Three-nozzle Wide-angle Spray Atomization Technology with wet mop for window cleaning
3) Intelligent climbing system to avoid slipping
4) Increase 37% efficiency through the brand new WIN-SLAM 4.0 intelligent planning
5) Mutiple cleaning modes at your fingertips with the ECOVACS HOME App

3. One WINBOT for all windows
1) Adaptive to various window types
2) Two powering modes available to meet different charging needs

4. 12-stage protection
1) 8-hardware-based fall protection measures
2) 3-stage intelligent fall protection
3) Accidental damage insurance

BLAST

BLAST

Boosted Large-Airflow Suction Technology
BLAST-ing Truly Effective Vacuuming Myths

BLAST-ing Truly Effective Vacuuming Myths

Cleaning efficacy lies not just in suction power. Introducing the revolutionary BLAST (Boosted Large-Airflow Suction Technology) Solution, DEEBOT T50 MAX redefines the truly effective vacuuming, balances maximized airflow and sufficient suction power.
78% Increase in Carpet Cleaning Efficacy

78% Increase in Carpet Cleaning Efficacy

With advanced airflow and suction power, deep-cleaning carpets becomes effortless.
Effortless Window Cleaning with No Restrictions

Effortless Window Cleaning with No Restrictions

Unique, cutting-edge window cleaning station, a multi-functional dock to free your hands

Unique, cutting-edge window cleaning station, a multi-functional dock to free your hands

WINBOT W2 PRO OMNI introduced the cutting-edge window cleaning station - an all-in-one multi-purpose dock that can serve as a control panel, changer, stabler and the portable storage room for your window cleaning task.

DEEBOT T50 MAX PRO OMNI Robotic Vacuum Cleaner (18,500Pa, ZeroTangle, TruEdge)

Navigation Type
dToF
Obstacle Avoidance
RGBD
YIKO
YIKO-GPT
Integrated voice control(Y/N)
Yes
mopping type
OZMO Turbo
Cleaning mode
vacuum, mop, vacuum and mop, vacuum first and then mop
Edge Mopping
TruEdge 2.0
Vacuum port type (straight suction port/main brush)
main brush
Fan pressurization (Y/N)
Yes
Dust box capacity(L)
0.3
Dust Box filter(Filter Net /Cotton/Filter)
Filter Net , Antibacterial Filter
Dust box detection(Y/N)
No
Washable filter(Y/N)
Yes
filter level
F9
Main brush type
floating
Extendable Side Brush
Yes
Extendable Mop
Yes
Main brush material
brush
Tangle detection (Y/N)
Yes
Anti-tangle technology
ZeroTangle 2.0
ZeroTangle(Y/N)
Yes
TruEdge(Y/N)
Yes
Ultrasonic carpet detection(Y/N)
Yes
Carpet pressurization(Y/N)
Yes
Mop pressurization (Y/N)
No
water tank capacity(ml)
80
auto refill (station to deebot)
Yes
Barrier crossing ability (mm)(with mop)
22
automatic mop lifting (mm)
18
Compatible with Automatic upper and lower water system
No
auto dust collection
Yes
Dust colletion duration
5+2+5
dust bag detection(Y/N)
Yes
dust bag capacity(L)
3
automatic mop cleaning
Yes
warm water mop cleaning
40-75℃
dirty water tank capacity(L)
4L
clean water tank capacity(L)
4L
water tank detection (Y/N)
Yes
Sewage detection(Y/N)
Yes
Mopping area based on water tank capacity(m²)
≥400
low water level alert(Y/N)
Yes
hot air dry
Yes
Temperature-controlled mop washing
Yes
hot air drying duration
2h( default)/3h/4h
Detachable cleaning tank(Y/N)
Yes
Automatic addition of cleaning solution-Tank
Yes
Base station self-cleaning - scraping arm method
Yes
vacuum level(MAX)(Pa)
18,500Pa
noise-standard mode -sweep (dBA)
64.9
noise-standard mode-sweep&mop (dBA)
64.6
Battery type
Li-ion
Battery capacity(mAh)
6400
Number of cells
1
charging time(H)
≈3.5h
Charging method (fast charging/normal charging)
fast charging
working time on hard floor-silent mode(sweep)(min)
206min
working time on hard floor-standard mode(sweep)(min)
194min
working time on hard floor-silent mode(sweep&mop)(min)
164min
working time on hard floor-standard mode(sweep&mop)(min)
159min
DEEBOT working voltage(V)
20V
Deebot dimension (wide/depth/height mm)
353*351*98
Net weight (KG)
12.4
station dimension(wide/depth/height mm)(without base)
350*294*533
station dimension(wide/depth/height mm)(with base)
350*477*533
Outer Carton Dimension(wide/depth/height mm)
590*380*405
INBOX
DEEBOT*1 OMNI station*1 Power cord*1 User Manual*1 Quick guide*1 Mopping pad plate*2 Washable Mopping Pad*2 Side Brush*1 Main brush&Main Brush Cover*1 Antibacterial Filter *1 Antibacterial Dust Bag*1 clean water tank*1 dirty water tank*1
Minimum Window Size
30*40 (cm)
Applicable Window
all types of flat windows
Auto Spray (Y/N)
Yes
Manual Spray (on APP)
Yes
Spray Width(cm)
Beyond the edge ≤1cm
Spray Length (front)(cm)
≤30
Spray Uniformity (variance)
≤0.5
Ratio of Spray Coverage
≥70%
Max Accumulated Spray Area of Water Tank(Fast Mode, ㎡)
40±3
Method of Spray
6
Self-adaptive Spray Volume (Y/N)
Yes
Number of Spray Nozzles
with plastic nozzles
Material of Wiping Pad
Micorfiber(both sides)
Water Tank Empty Reminding (Y/N)
Yes
Frame Distance Detection (Y/N)
Yes
Water Tank Capacity(ml)
60±5
Cleaning Mode
Fast Cleaning Mode, Deep Cleaning Mode, Thorough Cleaning Mode, Edge Cleaning Mode, Spot Cleaning Mode, Zone Cleaning Mode, Heavy-Duty Cleaning Mode
Intelligent Route Planning
Yes
Power-off protection
Yes
Auto Back to Start Point
Yes
Voice Report
Yes
Length of Power cord (m)
5.5
Length of Safety Rope (m)
1
Length of Extension Cord (m)
No
Cleaning Solution (ml)
No
Cleaning Cloth Size (m㎡)
260mm*251mm
Robot Size (mm)(l/w/h)
271*271*77
Weight of Robot (kg)
1.6±0.1
Station Dimension (mm)(l/w/h)
312*215*327
Weight of Station (kg)
5.5±0.2
Working Time per Charge (min)
110min±10%
Charging Time (H)
≤3h
Working Speed (min/㎡)
1min45s±15s(Fast Mode)
Battery Specifications (Type, mAh)
Lithium 4500mah
Battery Voltage(V)
24
Battery Weight (g)
≈1330
Power off protection time(Full charge)
30 min
Gross Weight (kg)
8.5
Size of Carton Box (mm)(l/h/w)
380*297*406
Split Drive Tech (Y/N)
No
Intelligent Climbing System
Yes
Type of Blower Fan
Brushless Motor
Suction Power while moving(Pa)
2800
Max. Suction Power(Pa)
5500±500
Cleaning Efficiency in Default Mode (1X1㎡)
1min45s±15s(Fast Mode)
Path Planning Tech
WIN-SLAM 4.0
Cleaning Mode
Fast Cleaning Mode Deep Cleaning Mode Thorough Cleaning Mode Edge Cleaning Mode Spot Cleaning Mode Zone Cleaning Mode Heavy-Duty Cleaning Mode
Return to Initial Spot(Y/N)
Yes
Min. Detectable Height of Obstacle(mm)
4
Min. Detectable Height of Frame(mm)
2
Frame Detection (Y/N)
Yes
Breakpoint Continuation (Y/N)
Yes
APP Control
Yes
Manual Control (on APP)
Omnidirectional remote control
Min. Window Size (cm)
30*40
Applicable Window Type
all types of flat windows
Applicable Frame Type
with Frame & Frameless
Min. Glass Thickness (mm)
3
Dimension of WINBOT(mm, L*W*H)
271*271*77
Weight of WINBOT (kg)
1.6±0.1
Auto Take-up Rope (Y/N)
Yes
Speed Control of Take-up (Y/N)
Yes
Load Detection of Take-up (Y/N)
Yes
Compound Cable (Y/N)
Yes
Length of DC cord (m)
5.5
Auto releasing cord with low resistance(Y/N)
Yes
Safety lock for releasing cord (Y/N)
Yes
Power-off Protection (Y/N)
Yes
Power-off Protection Duration (min)
30
Auto return in low battery status (Y/N)
Yes
Auto take-up in low battery status (Y/N)
Yes
Extra Weight for Protection (Y/N)
Yes
Weight of Station(kg)
5.5±0.2
Suction Cup (Y/N)
Yes
El control of Suction Cup(Y/N)
Yes
Max. Adsorption Power(N)
≥800
Dimension of WINBOT(mm, L*W*H)
271*271*77
Battteries Capacity (Type, mAh)
Lithium 4500mAh
Battery Nominal Voltage (V)
24
Typle of Blower Fan
Brushless Motor
Battteries Capacity (Type, mAh)
98.55
Weight of WINBOT (kg)
1.6±0.1
Weight of Batteries (g)
ca. 1330
Number of Batteries
12
Rated Power (W)
126
Powering Mode
Battery-powered operation /Plugged-in operation
Rated Voltage (V)
24
Charging Time (H)
≤3
Cleaning Efficiency in Default Mode (1X1㎡)
1min45s±15s(Fast Mode)
Battery Life (min)
110min±10%
One-time Working Area in Fast Cleaning Mode(㎡)
ca. 55㎡
One-time Working Area in Deep Cleaning Mode(㎡)
ca. 22㎡
Control Panel (Y/N)
Yes
One-key Switch on & off (Y/N)
Yes
One-key Return (Y/N)
Yes
Voice Reminder (Y/N)
Yes
Dimension of Wiping Pad (LengthxWidth mm)
260*251
Support OTA Upgrade (Y/N)
Yes
Length of DC cord (m)
5.5
Length of AC cord (m)
1.8
Length of Backup Safety Rope (m)
1
Capacity of Cleaning Solution (ml)
230
Filling Nozzle (Y/N)
Yes
User Manual
1
Cleaning Solution
1
Number of Wiping Pad
2
Carabiner
1
Safety Rope
1
CONTENTS
WINBOT*1, Station*1, Safety Rope*1, Carabiner*1, Wiping Pad*2, Cleaning Solution*1(Empty Bottle), User Manual*1
WINBOT
1
Station
1
Net Weight (Kg)
7.2
Gross Weight (Kg)
8.5
Dimension of Packaging (mm, L*W*H)
380*297*406

Instruction Manuals

DEEBOT T50 MAX Family.pdf
